High frequency spindle for the HSC (High Speed Cutting) – Editing.
High-speed grinding, – drill, graving and milling etc.
For use in machine tools.
Documents to download:
Spindle mass
Performance graph

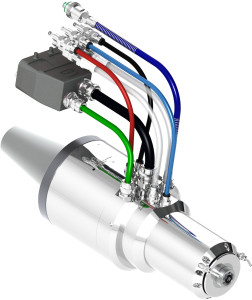

With the model of type 8045-5, we can offer a HSC spindle, which can easily and quickly be installed in your conventional milling machine. With the rear adapter, which is available in the common formats SK / BT 40/50 or HSK 63/80, the HSC spindle can be set up in next to no time. The Type 8045-5 is equipped with a pneumatic cone change system for HSK-E25 tool
holders. Benefit from the advantages of our spindles, like – among other –
highest concentricity, speeds up to 50,000 U / m and excellent stability.
Of course, you get the right equipment (frequency, cooling compressor system, etc.) from our company. As a particularly convenient solution we would like to point to the system cabinet FXK-3. Here, we have combined all components for the HSC spindle to operate in a compact housing.
Technical Data
| Collet shank diameter: | max. 10,0 mm |
| Collet type: | HSK-E25 |
| Housing: | Stainless steel |
| Housing diameter: | 80/126 mm |
| Motor construction: | Three-phase-asynchronous motor |
| Speed range: | 5.000 – 50.000 rpm |
| Voltage V Maximum: | 210 |
| Current A Maximum: | 12 |
| Torque in Ncm: | 60 |
| Frequency range Hz: | 83 – 833 |
| Performance kw Maximum: |
S1: 2,5 |
| Type and number of ball bearing: | Hybrid steel / ceramic, permanently lubricated, 4 pcs |
| Run out inner taper mm: | < 0,002 |
| Tool change: | pneumatic change of cone HSK-E25 |
| Cooling: | Liquid cooled |
| Weight: | ca. 14 Kg |
| Order number: | 8045-5 |
Periphery:
HF Converter
HFU-3000
HFU-3200
Spindle cooler
K4305
